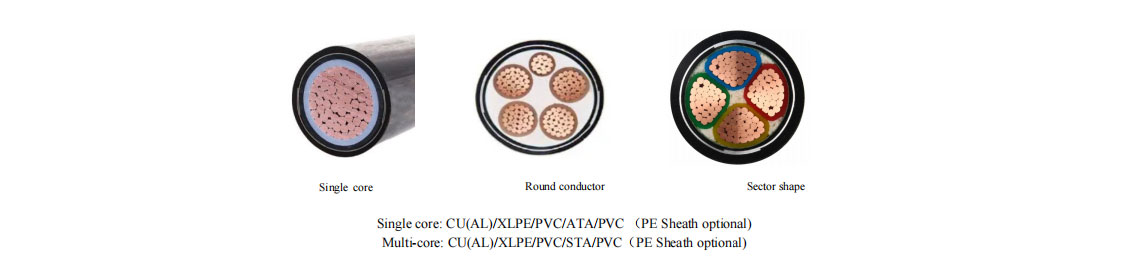

Kabel Daya IEC 0.6/1KV Insulasi XLPE Steel Tape Armoured (STA)

OVERVIEW

Aplikasi

Sagedigunakake kanggo pamasangan tetep ing njero ruangan lan ing njaba ruangan ing saluran kabel utawa langsung ing lemah. Kabel-kabel iki diwenehi perlindungan mekanis lan amarga saka iku cocok kanggo digunakake ing njaba ruangan, dikubur langsung lan wilayah-wilayah kang ana bebaya tekanan mekanis mendadak.

Fitur

• Suhu kerja:

• Suhu maksimal konduktor nalika operasi normal: 90℃

• Suhu maksimal konduktor nalika korsleting (Durasi maks. 5s): 250℃

• Tegangan:

• AC 0.6/1KV

• Tegangan uji:

• AC 3.5KV selama 5 menit, ora breakdown

Standar

IEC60502-1, BS5467

SPECIFICATIONS

LOW VOLTAGE

Suhu Kerja 90℃

kabel inti tunggal saka tembaga

Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	armour kawat Ketebalan mm	Selubung njaba Ketebalan mm	Diameter prakira saka kabel mm	Max. DC tahanan ing 20C (Ω/km)
1.5	0.7	1.2	0.2	1.8	10.8	12.1
2.5	0.7	1.2	0.2	1.8	11.2	7.41
4	0.7	1.2	0.2	1.8	11.7	4.61
6	0.7	1.2	0.2	1.8	12.2	3.08
10	0.7	1.2	0.2	1.8	13.2	1.83
16	0.7	1.2	0.2	1.8	14.2	1.15
25	0.9	1.2	0.2	1.8	15.8	0.727
35	0.9	1.2	0.2	1.8	16.8	0.524
50	1	1.2	0.2	1.8	18.4	0.387
70	1.1	1.2	0.2	1.8	20.2	0.268
95	1.1	1.2	0.2	1.8	21.8	0.193
120	1.2	1.2	0.2	1.8	23.4	0.153
150	1.4	1.2	0.2	1.8	25.4	0.124
185	1.6	1.2	0.2	1.8	27.4	0.0991
240	1.7	1.2	0.5	2	31.4	0.0754
300	1.8	1.2	0.5	2	33.8	0.0601
400	2	1.2	0.5	2.2	37.8	0.047
500	2.2	1.2	0.5	2.3	41.2	0.0366
630	2.4	1.3	0.5	2.4	45.3	0.0283

kabel tembaga inti loro

NO. Of konduktor	Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	kawat pelindung Ketebalan mm	Selubung njaba Ketebalan mm	Dhiameter kurang luwih saka kabel mm	Max. DC resistansi ing 20C (Ω /km)
2	1.5	0.7	1.2	0.2	1.8	13.6	12.1
2	2.5	0.7	1.2	0.2	1.8	14.4	7.41
2	4	0.7	1.2	0.2	1.8	15.4	4.61
2	6	0.7	1.2	0.2	1.8	16.4	3.08
2	10	0.7	1.2	0.2	1.8	18.4	1.83
2	16	0.7	1.2	0.2	1.8	20.4	1.15
2	25	0.9	1.2	0.2	1.8	23.6	0.727
2	35	0.9	1.2	0.2	1.8	27	0.524
2	50	1	1.2	0.2	1.8	24.7	0.387
2	70	1.1	1.2	0.2	1.8	27.4	0.268
2	95	1.1	1.2	0.5	2	31.6	0.193
2	120	1.2	1.2	0.5	2.1	34.7	0.153
2	150	1.4	1.2	0.5	2.2	37.9	0.124
2	185	1.6	1.2	0.5	2.3	41.4	0.0991
2	240	1.7	1.3	0.5	2.4	45.4	0.0754
2	300	1.8	1.4	0.5	2.6	49.9	0.0601
2	400	2	1.5	0.5	2.8	55.8	0.047

kabel tembaga 3 inti

NO. Of konduktor	Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	selot pelindung Ketebalan mm	Selubung njaba Ketebalan mm	Dhiameter kurang luwih saka kabel mm	Max. DC resistansi ing 20C (Ω /km)
3	1.5	0.7	1.2	0.2	1.8	14	12.1
3	2.5	0.7	1.2	0.2	1.8	14.9	7.41
3	4	0.7	1.2	0.2	1.8	16	4.61
3	6	0.7	1.2	0.2	1.8	17.1	3.08
3	10	0.7	1.2	0.2	1.8	19.2	1.83
3	16	0.7	1.2	0.2	1.8	21.4	1.15
3	25	0.9	1.2	0.2	1.8	24.6	0.727
3	35	0.9	1.2	0.2	1.9	28.7	0.524
3	50	1	1.2	0.2	1.9	28.2	0.387
3	70	1.1	1.2	0.5	2	33.4	0.268
3	95	1.1	1.2	0.5	2.1	36.6	0.193
3	120	1.2	1.2	0.5	2.2	40.1	0.153
3	150	1.4	1.3	0.5	2.4	44.5	0.124
3	185	1.6	1.4	0.5	2.5	48.8	0.0991
3	240	1.7	1.5	0.5	2.7	54.1	0.0754
3	300	1.8	1.6	0.5	2.9	59.3	0.0601
3	400	2	1.7	0.5	3	64.3	0.047

kabel tembaga 4 inti

NO. Of konduktor	Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	selot pelindung Ketebalan mm	Selubung njaba Ketebalan mm	Dhiameter kurang luwih saka kabel mm	Max. DC resistansi ing 20c ( 0 /km)
4	1.5	0.7	1.2	0.2	1.8	14.8	12.1
4	2.5	0.7	12	0.2	1.8	15.7	7.41
4	4	0.7	1.2	0.2	1.8	17	4.61
4	6	0.7	12	0.2	1.8	18.2	3.08
4	10	0.7	1.2	0.2	1.8	20.6	1.83
4	16	0.7	12	0.2	1.8	23	1.15
4	25	0.9	1.2	0.2	1.8	26.9	0.727
4	35	0.9	1.2	0.5	2	32.6	0.524
4	50	1	1.2	0.5	2	32.3	0.387
4	70	1.1	12	0.5	2.1	36.6	0.268
4	95	1.1	1.2	0.5	2.3	40.6	0.193
4	120	1.2	1.3	0.5	2.4	44.9	0.153
4	150	1.4	1.4	0.5	2.6	49.5	0.124
4	185	1.6	1.5	0.5	2.7	54.7	0.0991
4	240	1.7	1.6	0.5	2.9	60.8	0.0754
4	300	1.8	1.7	0.5	3.1	66.5	0.0601
4	400	2	1.9	0.5	3.4	75.8	0.047

kabel tembaga 5 inti

NO. Of konduktor	Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	selot pelindung KetebalanGSS mm	Selubung luar Ketebalan mm	Dhiameter kurang luwih saka kabel mm	Max. DC hambatan ing 20C( Q /km)
5	1.5	0.7	1.2	0.2	1.8	15.6	12.1
5	2.5	0.7	1.2	0.2	1.8	16.6	7.41
5	4	0.7	1.2	0.2	1.8	18	4.61
5	6	0.7	1.2	0.2	1.8	19.3	3.08
5	10	0.7	1.2	0.2	1.8	22	1.83
5	16	0.7	1.2	0.2	1.8	24.7	1.15
5	25	0.9	1.2	0.2	1.9	29.3	0.727
5	35	0.9	1.2	0.5	2.1	35.5	0.524
5	50	1	1.2	0.5	2.1	35.1	0.387
5	70	1.1	1.2	0.5	2.2	39.7	0.268
5	95	1.1	1.3	0.5	2.4	44.5	0.193
5	120	1.2	1.4	0.5	2.5	48.8	0.153
5	150	1.4	1.5	0.5	2.7	54.3	0.124
5	185	1.6	1.6	0.5	2.9	59.9	0.0991
5	240	1.7	1.7	0.5	3.1	66.5	0.0754
5	300	1.8	1.8	0.5	3.3	72.8	0.0601
5	400	2	2	0.8	3.7	85.8	0.047

kabel inti 3+1

NO. Of konduktor	Ukuran mM2		NO. Of konduktor	Baja mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	selot pelindung Ketebalan mm	Selubung. luar Ketebalan mm	Dhiameter kurang luwih penampang kabel mm	Max. DC hambatan M20C( 0 /km)
3	1.5		1	1	0.7	1.2	0.2	1.8	15.6	12.1
3	2.5		1	1.5	0.7	1.2	0.2	1.8	16.6	7.41
3	4		1	2.5	0.7	1.2	0.2	1.8	18	4.61
3	6		1	4	0.7	1.2	0.2	1.8	19.3	3.08
3	10		1	6	0.7	1.2	0.2	1.8	22	1.83
3	16		1	10	0.7	1.2	0.2	1.8	24.7	1.15
3	25		1	16	0.9	1.2	0.2	1.8	29.3	0.727
3	35	+	1	16	0.9	1.2	0.5	2	35.5	0.524
3	50	+	1	25	1	1.2	0.5	2	35.1	0.387
3	70	+	1	35	1.1	1.2	0.5	2.1	39.7	0.268
3	95	♦	1	50	1.1	1.2	0.5	2.3	44.5	0.193
3	120		1	70	1.2	1.3	0.5	2.4	48.8	0.153
3	150	♦	1	70	1.4	1.4	0.5	2.6	54.3	0.124
3	185		1	95	1.6	1.5	0.5	2.7	59.9	0.0991
3	240		1	120	1.7	1.6	0.5	2.9	66.5	0.0754
3	300	+	1	150	1.8	1.7	0.5	3.1	72.8	0.0601
3	400		1	185	2	1.9	0.5	3.4	85.8	0.047

kabel inti 3+2

NO. Of konduktor	Ukuran mM2	+	NO. Of konduktor	Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	selot pelindung Ketebalan mm	Outer-s heath Ketebalan mm	Approx Diameter saka kabel mm	Max. DC hambatan ing 20C( Q /km)
3	1.5	+	2	1	0.7	1.2	0.2	1.8	15.2	12.1
3	2.5	+	2	1.5	0.7	1.2	0.2	1.8	16.3	7.41
3	4	+	2	2.5	0.7	1.2	0.2	1.8	17.5	4.61
3	6	+	2	4	0.7	1.2	0.2	1.8	18.8	3.08
3	10	+	2	6	0.7	1.2	0.2	1.8	21.4	1.83
3	16	+	2	10	0.7	1.2	0.2	1.8	24	1.15
3	25	+	2	16	0.9	1.2	0.2	1.9	28.3	0.727
3	35	+	2	16	0.9	1.2	0.5	2.1	34.3	0.524
3	50	+	2	25	1	1.2	0.5	2.1	35.1	0.387
3	70	+	2	35	1.1	1.2	0.5	2.2	39.7	0.268
3	95	+	2	50	1.1	1.3	0.5	2.4	44.5	0.193
3	120	+	2	70	1.2	1.4	0.5	2.5	48.8	0.153
3	150	+	2	70	1.4	1.5	0.5	2.7	54.3	0.124
3	185	+	2	95	1.6	1.6	0.5	2.9	59.9	0.0991
3	240	+	2	120	1.7	1.7	0.5	3.1	66.5	0.0754
3	300	+	2	150	1.8	1.8	0.5	3.3	72.8	0.0601
3	400	+	2	185	2	2	0.8	3.7	85.8	0.047

4+1 cores cables

NO. Of konduktor	Ukuran mM2	+	NO. Of konduktor	Ukuran mM2	Insulasi Ketebalan mm	Selubung njero Ketebalan mm	selot pelindung Ketebalan mm	Selubung luar Ketebalan mm	Dhiameter kurang luwih of cabto mm	Max. DC resistance at 20c ( Q /km)
4	1.5	+	1	1	0.7	1.2	0.2	1.8	15.4	12.1
4	2.5	+	1	1.5	0.7	1.2	0.2	1.8	16.5	7.41
4	4	+	1	2.5	0.7	1.2	0.2	1.8	17.8	4.61
4	6	+	1	4	0.7	1.2	0.2	1.8	19.1	3.08
4	10	+	1	6	0.7	1.2	0.2	1.8	21.8	1.83
4	16	+	1	10	0.7	1.2	0.2	1.8	24.4	1.15
4	25	+	1	16	0.9	1.2	0.2	1.9	28.9	0.727
4	35	+	1	16	0.9	1.2	0.5	2.1	35	0.524
4	50	+	1	25	1	1.2	0.5	2	32.7	0.387
4	70	+	1	35	1.1	1.2	0.5	2.2	37.3	0.268
4	95	+	1	50	1.1	1.3	0.5	2.3	41.9	0.193
4	120	+	1	70	1.2	1.3	0.5	2.4	45.8	0.153
4	150	+	1	70	1.4	1.4	0.5	2.6	50.8	0.124
4	185	+	1	95	1.6	1.5	0.5	2.8	56	0.0991
4	240	+	1	120	1.7	1.6	0.5	3	62.3	0.0754
4	300	+	1	150	1.8	1.7	0.5	3.2	68.4	0.0601
4	400	+	1	185	2	1.9	0.5	3.5	79	0.047
